25mm LED signs Graphic

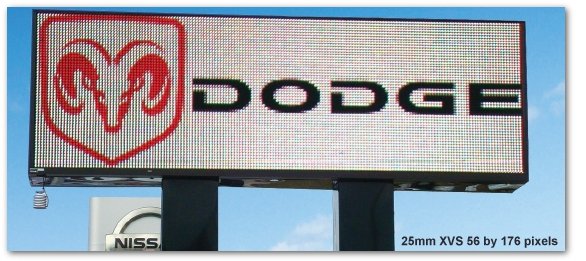

The 25mm watchFire sign is a mid-resolution electronic display, roughly mid-way between the resolution offered by the 16mm and 35mm models. Heights and widths are available in increments of approximately 8 x 16 inches. The 25mm colour technology is capable of displaying crisp video imaging, plus all standard digital images.

The 25mm LED sign is designed for medium range viewing, minimum 80' to an optimum distance of 200' to 250'. At the minimum distance the image will look clear but you will see the pixels. At the optimum viewing distances, the pixels will disappear and you will see a seamless image.


IGNITE™ GRAPHICS SOFTWARE

• Quite possibly, the easiest, yet powerful, LED sign software available
• Edit, schedule and update your sign from just one program
• Use the Ignite step-by-step wizards to effortlessly create and manage messages
• Preview your messages before you run them on your sign
• Import video files of custom content created in other software
• Hundreds of animations included in the EasyArt library with special collections
• Intuitive, easy-to-use interface
• Training manual included
• Complete training and post-installation support

25mm Electronic LED signs graphic

25mm Details


Feature Standard Spec With XVS Upgrade
Pixel Pitch 25mm: 1550 pixels/square meter resolution 25mm: 1550 pixels/square meter resolution
Character Height 7" and larger 7" and larger
Colour Palette 1.15 quintillion 4.72 sextillion (true white D65)
Expected LED Life + 100,000 hours + 100,000 hours
Viewing Angle ½ Brightness Angle: 140° horizontal x 70° vertical ½ Brightness Angle: 140° horizontal x 70° vertical
Video Capability Imported pre-recorded movie clips Imported pre-recorded movie clips and LIVE video feed, DVD feed
Graphics & Animation FREE: Hundreds built in. FREE: Hundreds built in.
Ignite™ Graphics Software Exclusively from watchFire. Includes:
  • Graphics and animation
  • Font editor
  • Message Logging
  • Wizards
  • User manual
Exclusively from watchFire. Includes:
  • Graphics and animation
  • Video
  • Font editor
  • Message Logging
  • Wizards
  • User manual
Communication Options RF Wireless; Phone Modem; Fiber Optic; LAN & WAN broadband RF Wireless; Phone Modem; Fiber Optic; LAN & WAN broadband (Note: Live video requires fiber direct connection)
Power 120 volt, single-phase 60 Hz 120 volt, single-phase 60 Hz
Field-Adjustable Brightness Control Super-Vivid 9,000 NITs to Energy-Conscious 7,000 Super-Vivid 9,000 NITs to Energy-Conscious 7,000

CONSTRUCTION and ENGINEERING

• watchFire LED modules are unique in featuring an all-weather encapsulation in a bed of silicone gel
• Modules rigorously tested through 180 consecutive days of underwater immersion, 60 consecutive days of salt spray, and temperatures down to -40° C
• Modular design can be scaled up to very large sizes
• Time, day and date displays (temperature display optional)
• 100% solid state with modular design for ease of service
• All manufacturing is controlled in watchFire's vertically integrated manufacturing plant in the U.S. Midwest, from LED circuit board assembly to aluminum cabinetry. A computerized state-of-the-art facility assures reliable on-time delivery.
• Extruded aluminum cabinetry featuring precision mitered corners, solid welds and 30% gloss black polyurethane finishes
• watchFire signs exclusively feature stainless fasteners
• Electrical: required service equals 100% of total wattage; average energy consumption equals about 1/3 of total wattage


MOST POPULAR SIZES
Dimensions LED Pixel Matrix
3' x 8' 4"
3' x 10'
3' x 12' 4"
32 x 96
32 x 112
32 x 144
3' 8" x 8' 4"
3' 8" x 10'
3' 8" x 12' 4"
40 x 96
40 x 112
40 x 144
4' 4" x 8' 4"
4' 4" x 10'
4' 4" x 12' 4"
48 x 96
48 x 112
48 x 144
6' x 8' 4"
6' x 10'
6' x 12' 4"
64 x 96
64 x 112
64 x 144
LARGER SIZES
8' 4" x 16' 4" 96 x 192
10' x 20' 4" 112 x 240
