19mm LED signs Graphic

watchFire 19mm monochrome models are high resolution LED signs that offer superior shading accuracy and excellent viewing at any distance, but especially at close range. 19mm displays are built in a variety of standard sizes, ranging from small to very large, in 12 by 12 inch increments. Choose your video display from red or amber monochrome with 4,096 shades.

The 19mm LED sign is best viewed from a minimum of 60' to an optimum distance of 150' to 185'. At the minimum distance the image will look clear, but you will see the pixels. At the optimum viewing distances, the pixels will disappear and image becomes seamless.


IGNITE™ GRAPHICS SOFTWARE

• Edit, schedule and update your sign from just one program
• Use the Ignite step-by-step wizards to effortlessly create and manage messages
• Preview your messages before you run them on your sign
• Import video files of custom content created in other software
• Hundreds of animations included in the EasyArt library with special collections
• Intuitive, easy-to-use interface
• Training manual included
• Complete training and post-installation support

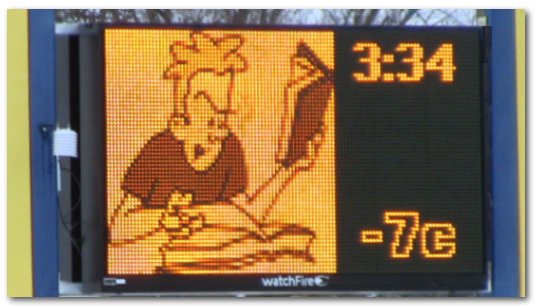

19mm LED signs school photo

19mm Details


Feature Standard Spec
Pixel Pitch 19mm: 2,750 pixels/square meter resolution
Character Height 5" and larger
Available Colours Red or Amber
Shading Depth 4,096 shades
Expected LED Life + 100,000 hours
Viewing Angle ½ Brightness Angle: 90° horizontal x 40° vertical
Video Capability Imported pre-recorded AVI clips (samples included)
Graphics & Animation FREE: Hundreds built in (JPG, BMP, GIF and AVI)
Ignite™ Graphics Software
  • Graphics and animation
  • Font editor
  • Message Logging
  • Wizards
  • User manual
Communication Options RF Wireless; Phone Modem; Fiber Optic; LAN & WAN broadband
Power 120 volt, single-phase 60 Hz

CONSTRUCTION and ENGINEERING

• watchFire LED modules are unique in featuring an all-weather encapsulation in a bed of silicone gel
• Modules are rigorously tested through 180 consecutive days of underwater immersion, 60 consecutive days of salt spray, and temperatures down to -40° C
• Modular design can be scaled up to very large sizes
• Time, day and date displays (temperature display optional)
• 100% solid state with modular design for ease of service
• All manufacturing is controlled in watchFire's vertically integrated manufacturing plant in the U.S. Midwest, from LED circuit board assembly to aluminum cabinetry. A computerized state-of-the-art facility assures reliable on-time delivery.
• Extruded aluminum cabinetry featuring precision mitered corners, solid welds and 30% gloss black polyurethane finishes
• watchFire signs exclusively feature stainless fasteners
• Electrical: required service equals 100% of total wattage; average energy consumption equals about 1/3 of total wattage


MOST POPULAR SIZES
Dimensions LED Pixel Matrix
2' 5" x 7' 3"
2' 5" x 9' 3"
2' 5" x 11' 3"
32 x 112
32 x 144
32 x 176
3' 5" x 7' 3"
3' 5" x 9' 3"
3' 5" x 11'3"
48 x 112
48 x 144
48 x 176
4' 5" x 7' 3"
4' 5" x 9' 3"
4' 5" x 11' 3"
64 x 112
64 x 144
64 x 176
5' 5" x 7' 3"
5' 5" x 9' 3"
5' 5" x 11' 3"
80 x 112
80 x 144
80 x 176
LARGER SIZES
8' 4" x 16' 128 x 240
10' 4" x 20' 160 x 304
