19mm LED signs Graphic

The 19mm is our best selling model. The 19mm shows amazingly detailed, vibrant images and fits many applications. Heights and widths are available in increments of 12 inches. The 19mm colour technology culminates in electronic displays capable of displaying incredibly crisp, life-like video imaging, plus all standard digital images. The XVS upgrade super charges the display. Faster video rates, more colours and colour calibration to get true whites. XVS colour calibration goes above and beyond any other LED sign manufacturer.

The 19mm LED sign is designed for close to medium viewing, minimum 60' to an optimum distance of 150' to 185'. At the minimum distance the image will look clear but you will see the pixels. At the optimum viewing distances, the pixels will disappear and the image becomes seamless.


IGNITE™ GRAPHICS SOFTWARE

• Quite possibly, the easiest, yet powerful, LED sign software available
• Edit, schedule and update your sign from just one program
• Use the Ignite step-by-step wizards to effortlessly create and manage messages
• Preview your messages before you run them on your sign
• Import video files of custom content created in other software
• Hundreds of animations included in the EasyArt library with special collections
• Intuitive, easy-to-use interface
• Training manual included
• Complete training and post-installation support

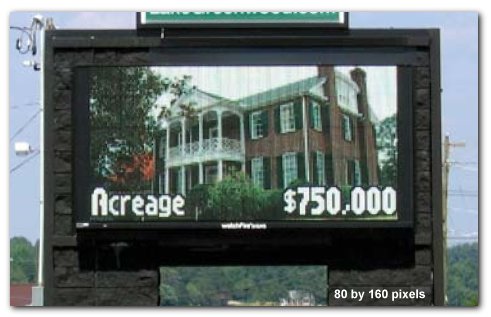

19mm LED signs house photo

19mm Details


Feature Standard Spec With XVS Upgrade
Pixel Pitch 19mm: 2750 pixels/square meter resolution 19mm: 2750 pixels/square meter resolution
Character Height 5" and larger 5" and larger
Colour Palette 1.15 quintillion 4.72 sextillion (true white D65)
Expected LED Life + 100,000 hours + 100,000 hours
Viewing Angle ½ Brightness Angle: 140° horizontal x 70° vertical ½ Brightness Angle: 140° horizontal x 70° vertical
Video Capability Imported pre-recorded clips. Imported pre-recorded clips and LIVE video feed, DVD feed
Graphics & Animation FREE: Hundreds built in. FREE: Hundreds built in.
Ignite™ Graphics Software Exclusively from watchFire. Includes:
  • Graphics and animation
  • Font editor
  • Message Logging
  • Wizards
  • User manual
Exclusively from watchFire. Includes:
  • Graphics and animation
  • Video
  • Font editor
  • Message Logging
  • Wizards
  • User manual
Communication Options RF Wireless; Phone Modem; Fiber Optic; LAN & WAN broadband RF Wireless; Phone Modem; Fiber Optic; LAN & WAN broadband (Note: Live video requires fiber direct connection)
Power 120 volt, single-phase 60 Hz 120 volt, single-phase 60 Hz
Field-Adjustable Brightness Control Super-Vivid 10,000 NITs to Energy-Conscious 7,500 Super-Vivid 10,000 NITs to Energy-Conscious 7,500

CONSTRUCTION and ENGINEERING

• watchFire LED modules are unique in featuring an all-weather encapsulation in a bed of silicone gel
• Modules are rigorously tested through 180 consecutive days of underwater immersion, 60 consecutive days of salt spray, and temperatures down to -40° C
• Modular design can be scaled up to very large sizes
• Time, day and date displays (temperature display optional)
• 100% solid state with modular design for ease of service
• All manufacturing is controlled in watchFire's vertically integrated manufacturing plant in the U.S. Midwest, from LED circuit board assembly to aluminum cabinetry. A computerized state-of-the-art facility assures reliable on-time delivery.
• Extruded aluminum cabinetry featuring precision mitered corners, solid welds and 30% gloss black polyurethane finishes
• watchFire signs exclusively feature stainless fasteners
• Electrical: required service equals 100% of total wattage; average energy consumption equals about 1/3 of total wattage


MOST POPULAR SIZES
Dimensions LED Pixel Matrix
2' 5" x 7' 3"
2' 5" x 9' 3"
2' 5" x 11' 3"
32 x 112
32 x 144
32 x 176
3' 5" x 7' 3"
3' 5" x 9' 3"
3' 5" x 11'3"
48 x 112
48 x 144
48 x 176
4' 5" x 7' 3"
4' 5" x 9' 3"
4' 5" x 11' 3"
64 x 112
64 x 144
64 x 176
5' 5" x 7' 3"
5' 5" x 9' 3"
5' 5" x 11' 3"
80 x 112
80 x 144
80 x 176
LARGER SIZES
8' 4" x 16' 128 x 240
10' 4" x 20' 160 x 304
